Workhorse Irons

Workhorse Irons, Deluxe Workhorse Armature Bar Fixture / Stand Set

Workhorse Irons, Deluxe Workhorse Armature Bar Fixture / Stand Set

Regular price $75.50 CAD
Regular price Sale price $75.50 CAD
Sale Sold out
Shipping calculated at checkout.

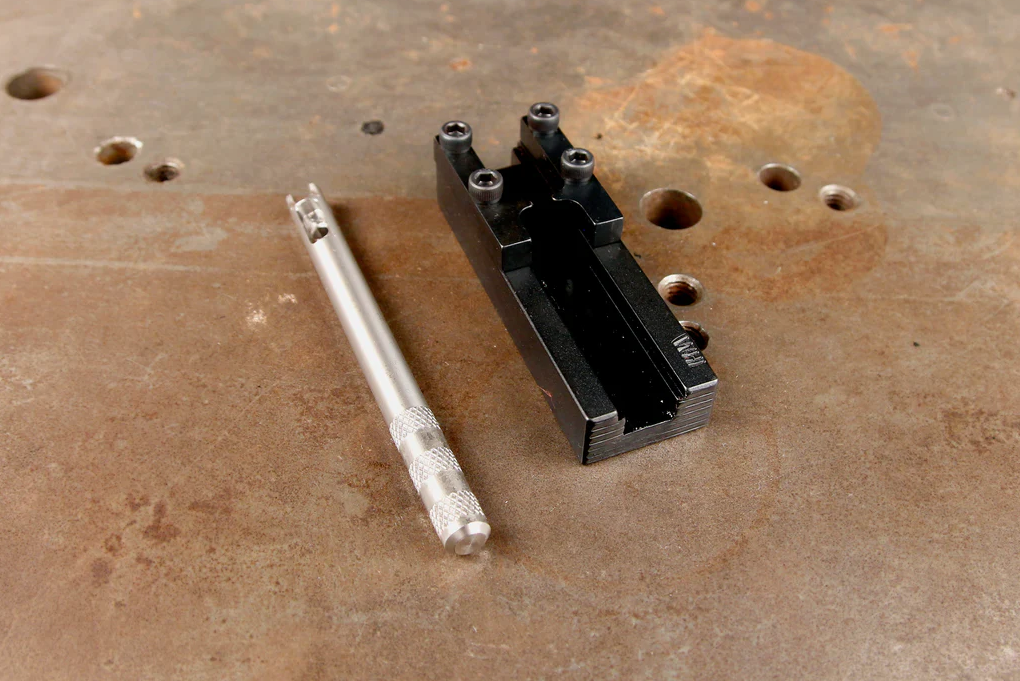

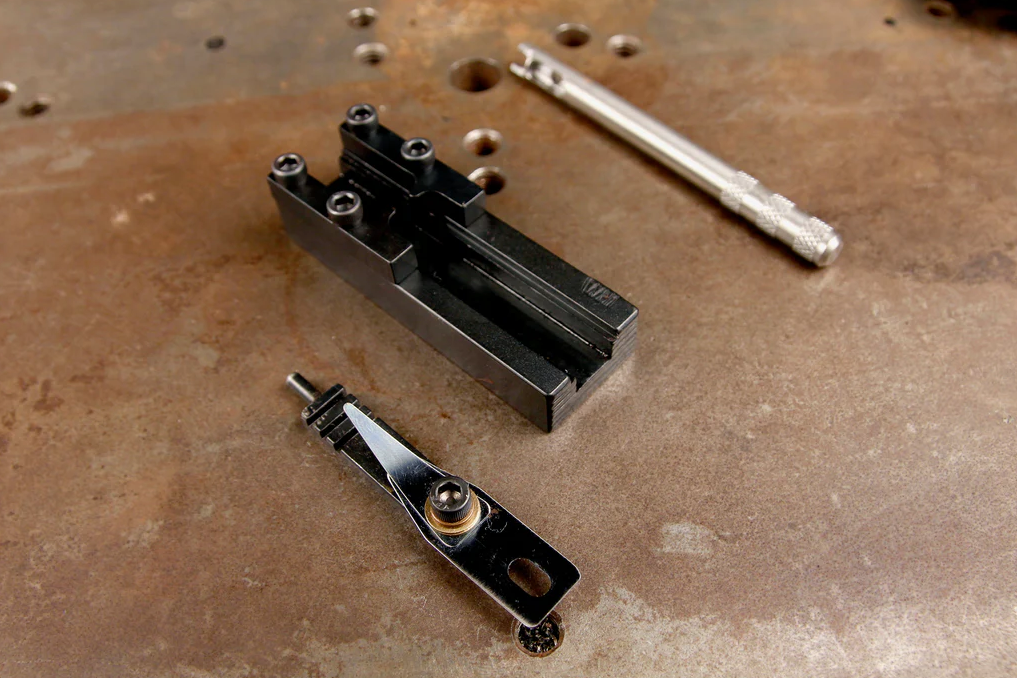

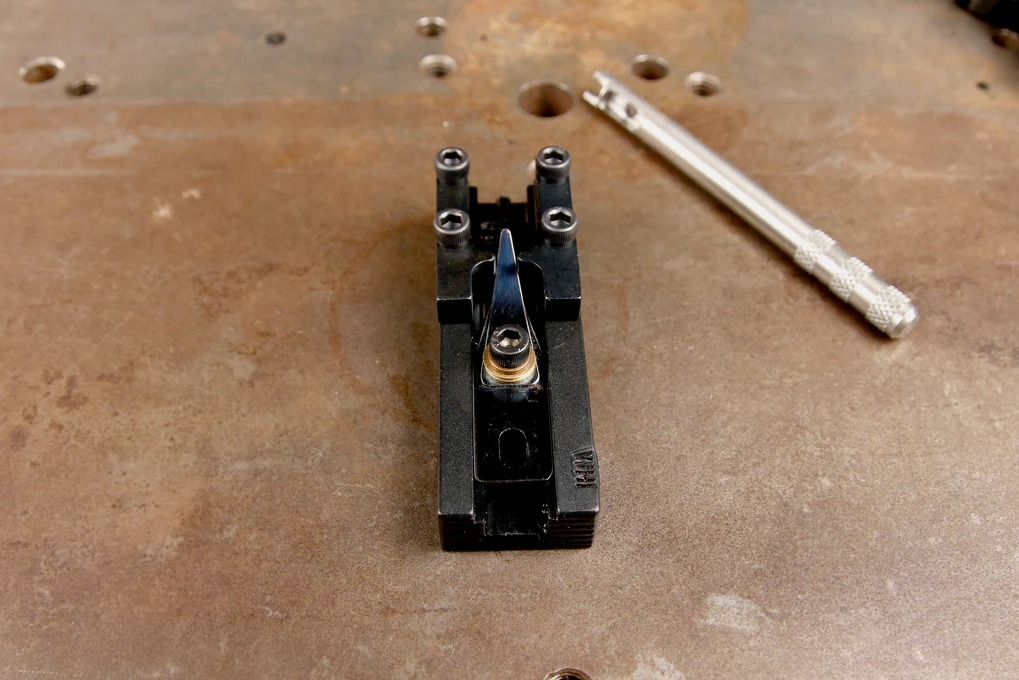

Deluxe Workhorse Armature Bar Fixture Set!

This is a very simple, yet effective tool used by our builders and many others. The perfect tool to easily attach springs to your a-bar while ensuring all parts are kept parallel and straight.

Deluxe Fixture works for 1/2" rear springs. It comes with or without our high quality alignment tool and comes standard with a hole in the base to hold the tool and use the fixture as a machine stand, freeing up both hands for repairs.

Armature Bar Fixture Specs:

  • Hardened Steel Base and Top Brackets to Ensure Years of Use
  • Standard 1/2" Wide Slot for Rear Springs
  • Standard 3/8" Wide Slot For Armature Bars
  • 1" x 3" Overall Part Dimensions

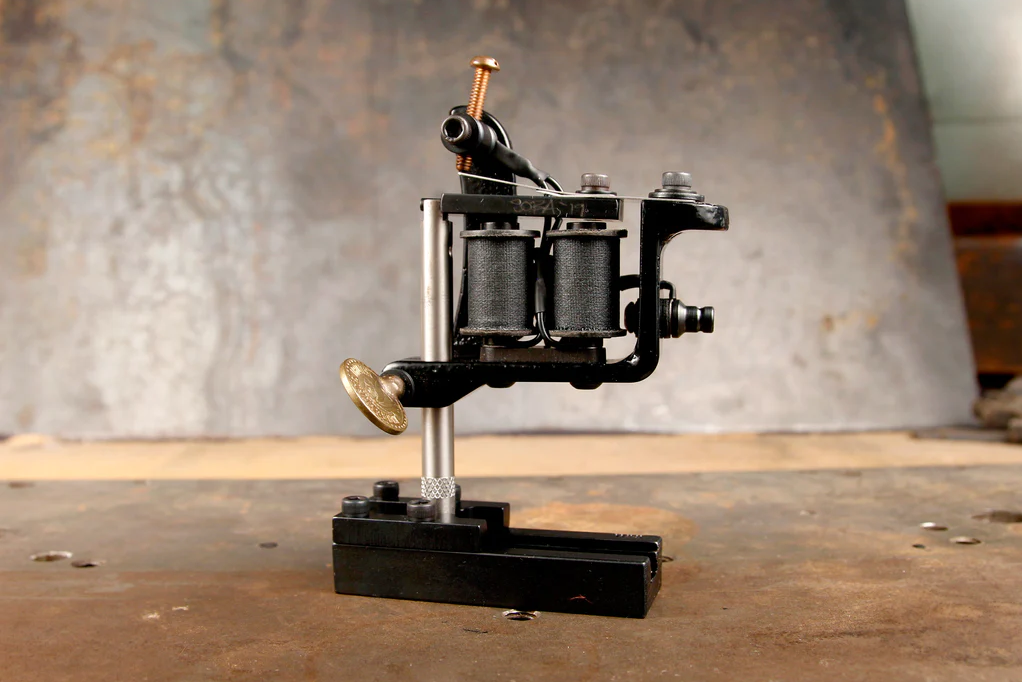

  • Insert Alignment Tool in hole to use as a stand to help hold your machine while working on it

Alignment Tool Specs:

  • 5/16" x 3.5" Stainless Bar
  • Knurled Grip
  • Armature Bar Nipple Slot on the top for alignment use
  • Armature Bar Groove in side for tweaking / turning your abar if necessary....we highly recommend that only those experienced with machine building and repair use the tweak option....it is not always necessary and not always the best way to make things hit flat, just one of many options.

Also:

  • These are must haves for machine building and machine repair
  • As always all parts made in the USA
  • Skills not included, sorry

    *machine obviously not included
